Nickel Alloy

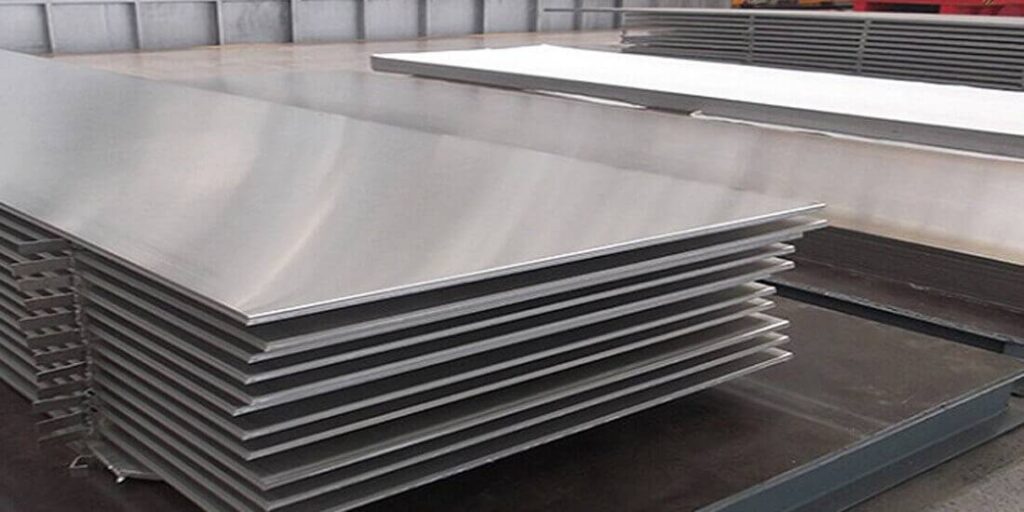

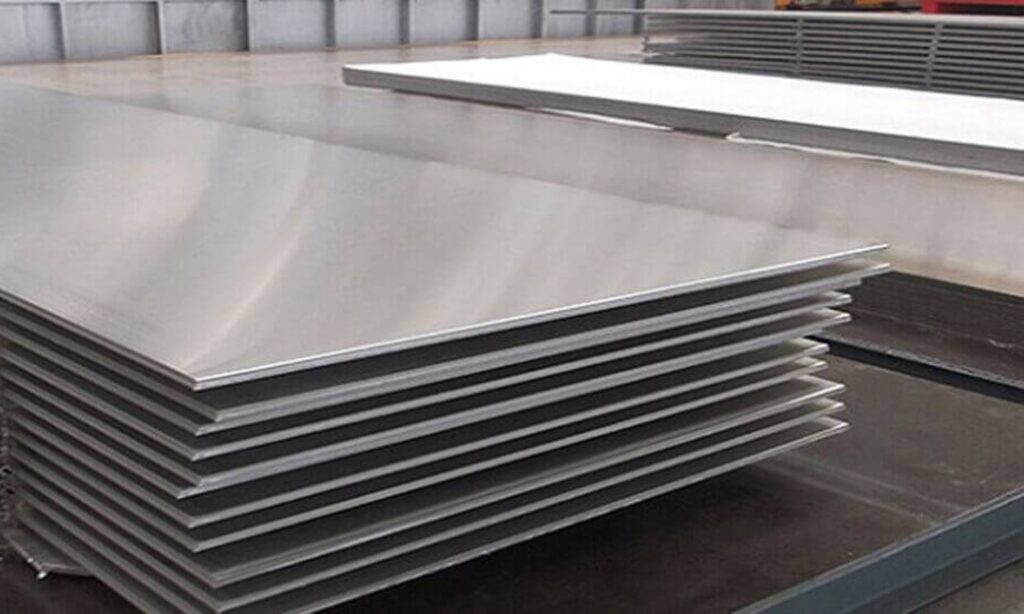

Nickel 201 Plate

High Performance Nickel 201 Plates, Sheets, Coils, Strips & Foils Manufactured for Corrosive and High Temperature Industrial Applications.

Grade Nickel 201 UNS N02201 DIN 2.4068
Standard ASTM B162 ASME SB162
Stock Available
Home › Raw Material › Nickel Alloy › Nickel 201 Plate

Product Overview

OM Export India Pvt. Ltd. is a trusted manufacturer and supplier of Nickel 201 Plates manufactured in accordance with international quality standards for demanding industrial applications. Nickel 201 is commercially pure wrought nickel with very low carbon content, offering excellent resistance to corrosion, outstanding ductility and superior mechanical performance across a wide range of operating environments.

Nickel 201 Plates are widely used in industries where exceptional resistance to alkalis, neutral chemicals and reducing environments is essential. Their excellent fabrication characteristics, weldability and thermal stability make them suitable for chemical processing, food processing, marine engineering, aerospace, power generation and petrochemical industries.

We manufacture Nickel 201 Plates in various thicknesses, widths, surface finishes and custom dimensions to meet specific project requirements. Every plate is produced using premium quality raw materials and undergoes strict quality inspection to ensure excellent dimensional accuracy, reliable mechanical properties and consistent performance.

Our Nickel 201 Plates are supplied with complete quality documentation and are suitable for both domestic and international industrial projects requiring dependable corrosion resistant nickel alloy products.

Key Features

Nickel 201 Plates are manufactured to deliver outstanding performance in demanding industrial environments while providing long service life and reliable corrosion resistance.

  • Excellent Corrosion Resistance
  • High Purity Nickel Alloy
  • Superior Weldability
  • Excellent Ductility
  • Good Thermal Conductivity
  • Outstanding Fabrication Properties
  • Excellent Resistance to Alkalis
  • Available in Multiple Sizes & Finishes

Product Specifications

Property Specification
Material Grade Nickel 201
UNS N02201
DIN 2.4068
Standard ASTM B162 / ASME SB162
Thickness 7 Gauge to 28 Gauge (Custom Sizes Available)
Width 30" to 240"
Length Up to 144" & Custom Lengths
Forms Plate, Sheet, Coil, Strip, Foil, Shim, Roll, Flats
Surface Finish 2D, 2B, BA, No.1, No.4, No.8 Mirror, Hairline, Satin
Processing Shearing, Cutting & Custom Sizes

Dimensions & Sizes

Parameter Available Range
Thickness 7 Gauge to 28 Gauge
Width 30" to 240"
Length Up to 144" & Custom Lengths
Available Forms Plate, Sheet, Coil, Strip, Foil, Shim, Roll & Flats
Surface Finish 2D, 2B, BA, Hairline, Satin, Mirror Finish

Chemical Composition

Element Composition (%)
Nickel (Ni)99.0 Min
Carbon (C)0.02 Max
Manganese (Mn)0.35 Max
Silicon (Si)0.35 Max
Copper (Cu)0.25 Max
Iron (Fe)0.40 Max
Sulphur (S)0.01 Max

Mechanical Properties

Property Value
Tensile Strength 462 MPa Min
Yield Strength 148 MPa Min
Elongation 45% Min
Density 8.89 g/cm³
Melting Point 1446°C

Standards & Specifications

Our Nickel 201 Plates are manufactured in compliance with internationally recognized standards including ASTM B162 and ASME SB162. Every product is manufactured with strict quality control to ensure excellent dimensional accuracy, corrosion resistance and dependable performance for industrial applications.

Applications

Nickel 201 Plates are extensively used in industries where excellent corrosion resistance, high purity and reliable mechanical performance are required. Their superior resistance to alkalis, neutral chemicals and elevated temperatures makes them suitable for a wide range of industrial applications.

  • Chemical Processing Industry
  • Petrochemical Plants
  • Marine Engineering
  • Aerospace Industry
  • Food Processing Equipment
  • Power Generation Plants
  • Heat Treatment Equipment
  • Pressure Vessels
  • Industrial Fabrication
  • General Engineering Applications

Frequently Asked Questions

Q1. What is Nickel 201 Plate used for?
Nickel 201 Plates are widely used in chemical processing, marine, aerospace, food processing, power generation and petrochemical industries due to their excellent corrosion resistance and high purity.

Q2. What standards are followed for Nickel 201 Plates?
Our Nickel 201 Plates are manufactured in accordance with ASTM B162 and ASME SB162 standards.

Q3. Are custom sizes available?
Yes. We supply Nickel 201 Plates in custom thicknesses, widths, lengths and finishes as per project requirements.

Q4. Which surface finishes are available?
We offer 2D, 2B, BA, Hairline, Satin, No.1, No.4 and Mirror finishes.

Q5. Do you provide quality test certificates?
Yes. Every supplied material can be provided with a Mill Test Certificate (MTC) and a NABL Approved Laboratory Testing Report where applicable.

Related Products

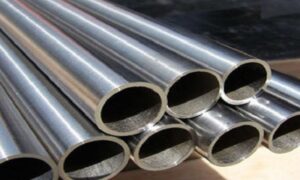

Hastelloy Tube

View Product

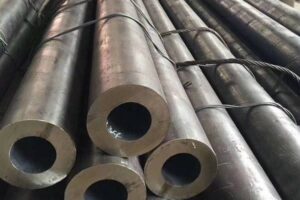

Monel Alloy
