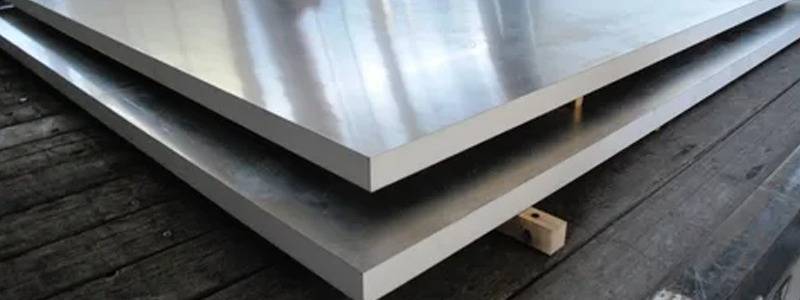

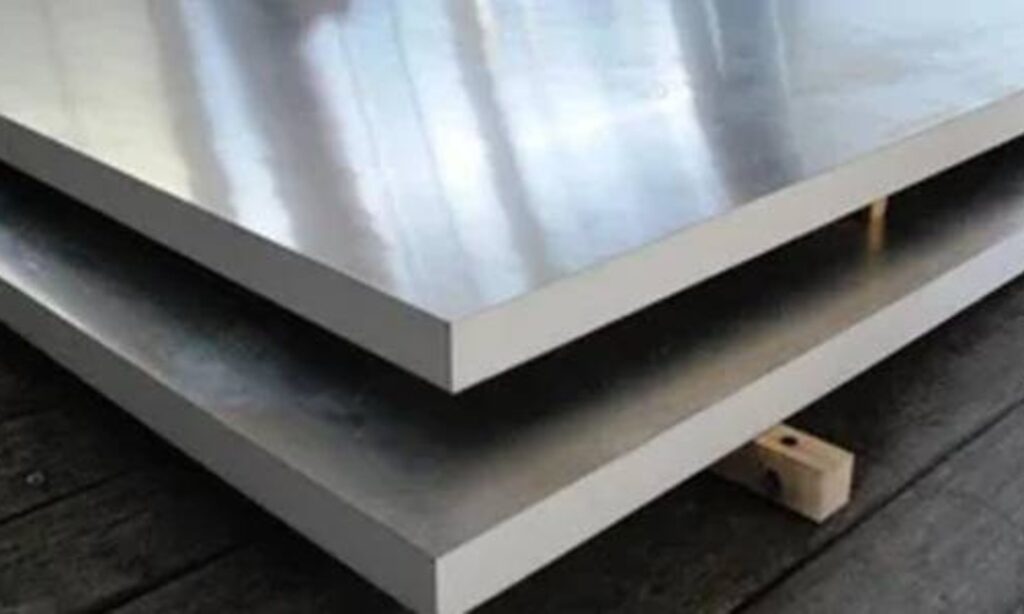

Aluminium 5052 Sheets & Plates

Need Technical Assistance?

Technical Support
Material Test Certificate
Export Documentation
Bulk Quantity Supply

Product Overview

OM Export India Pvt. Ltd. is a trusted manufacturer and supplier of premium quality Aluminium 5052 Sheets & Plates manufactured to meet international quality standards for demanding industrial and structural applications. Aluminium 5052 is a non-heat-treatable alloy known for its excellent corrosion resistance, high fatigue strength and outstanding formability.

Aluminium 5052 Sheets & Plates offer exceptional resistance to marine environments, moisture and industrial chemicals, making them an ideal choice for fabrication, transportation, architecture and general engineering applications. Their excellent weldability and lightweight properties provide reliable performance in both indoor and outdoor environments.

We manufacture Aluminium 5052 Sheets & Plates in a wide range of thicknesses, dimensions, tempers and surface finishes to satisfy diverse industrial requirements. Every product undergoes strict quality inspection to ensure dimensional accuracy, mechanical reliability and long service life.

Our Aluminium 5052 Sheets & Plates are widely supplied for domestic and international projects where corrosion resistance, durability and lightweight construction materials are required.

Key Features

Aluminium 5052 Sheets & Plates are designed to provide excellent mechanical performance, corrosion resistance and long-term durability for demanding industrial applications.

Excellent Corrosion Resistance
High Strength-to-Weight Ratio
Superior Weldability
Excellent Formability
Good Fatigue Strength
Excellent Marine Performance
Lightweight Material
Available in Multiple Tempers & Finishes

Product Specifications

Property	Specification
Material Grade	Aluminium 5052
UNS	A95052
DIN	3.3523
Standards	ASTM B209 / ASME SB209
Thickness	0.3 mm to 120 mm
Width	1000 mm to 3500 mm
Length	2000 mm to 6000 mm
Available Forms	Sheet, Plate, Coil, Strip, Foil, Shim Sheet, Perforated Sheet, Chequered Plate
Surface Finish	HR, CR, 2B, BA, No.1, No.4, No.8 Mirror, Hairline, Embossed, Satin, Brush
Tempers	O, H12, H14, H16, H18, H22, H24, H32, H34, H111, H112

Dimensions & Sizes

Parameter	Available Range
Thickness	0.3 mm – 120 mm
Width	1000 mm – 3500 mm
Length	2000 mm – 6000 mm
Available Forms	Sheet, Plate, Coil, Strip, Foil, Shim Sheet, Perforated Sheet & Chequered Plate
Surface Finish	HR, CR, 2B, BA, No.1, No.4, Mirror, Hairline, Satin

Chemical Composition

Element	Composition (%)
Silicon (Si)	0.50 Max
Iron (Fe)	0.50 Max
Copper (Cu)	0.10 Max
Manganese (Mn)	0.10 Max
Magnesium (Mg)	2.20 – 2.80
Chromium (Cr)	0.15 – 0.35
Zinc (Zn)	0.10 Max
Titanium (Ti)	0.10 Max
Aluminium (Al)	Balance

Mechanical Properties

Property	Value
Brinell Hardness	47 HB
Poisson's Ratio	0.33
Melting Range	607°C – 649°C
Modulus of Elasticity	70.3 GPa
Specific Heat	0.88 J/g-°C
Electrical Resistivity	4.99 × 10⁻⁶ ohm-cm

Standards & Specifications

Our Aluminium 5052 Sheets & Plates are manufactured in compliance with ASTM B209 and ASME SB209 standards, ensuring consistent quality, dimensional accuracy and dependable performance across various industrial applications.

Applications

Aluminium 5052 Sheets & Plates are widely used in industries where lightweight construction, corrosion resistance and excellent fabrication properties are essential.

Petrochemical Industry
Oil & Gas Industry
Chemical Processing Plants
Marine Applications
Power Generation
Food Processing Industry
Pharmaceutical Industry
Aerospace Industry
Architectural Structures
Automotive Components

Frequently Asked Questions

Q1. What is Aluminium 5052 used for?
Aluminium 5052 Sheets & Plates are widely used in marine, chemical processing, automotive, aerospace, architectural and general engineering applications.

Q2. Which standards are followed for Aluminium 5052 Sheets & Plates?
These products are manufactured in accordance with ASTM B209 and ASME SB209 standards.

Q3. Which tempers are available?
Common tempers include O, H12, H14, H16, H18, H22, H24, H32, H34, H111 and H112.

Q4. Are custom sizes available?
Yes. Aluminium 5052 Sheets & Plates are available in custom thicknesses, widths, lengths and finishes as per project requirements.

Q5. Do you provide quality certificates?
Yes. Every supplied material can be provided with a Mill Test Certificate (MTC) and a NABL Approved Laboratory Testing Report where applicable.
